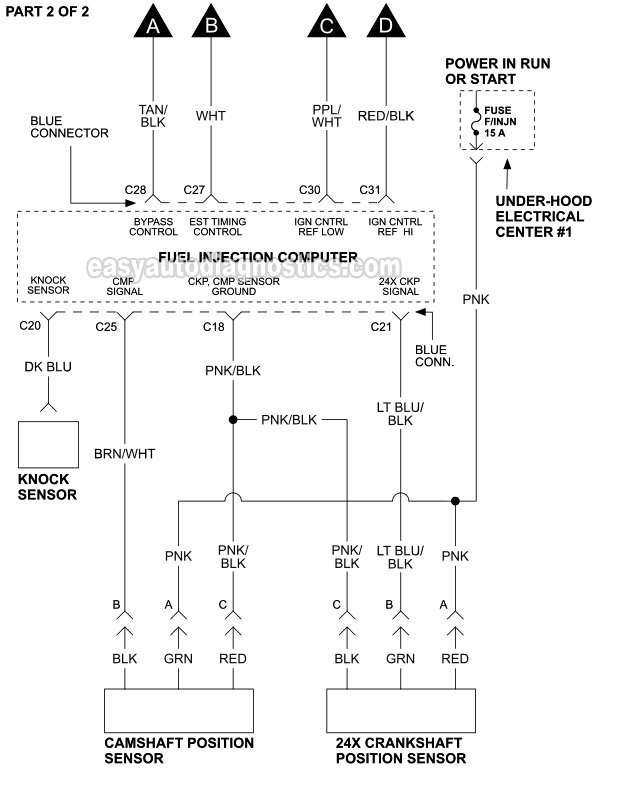

Ignition System Circuit Diagram (1995 3.1L V6 Chevrolet Lumina, Monte Carlo)

This simplified ignition system wiring diagram applies to the following vehicles:

• 1995 3.1L V6 Chevrolet Lumina.
• 1995 3.1L V6 Chevrolet Monte Carlo.

This typical circuit diagram includes the following circuits:

• Ignition coil packs.
• Crankshaft position (CKP) sensor (low resolution sensor).
• 24X Crankshaft position (CKP) sensor (high resolution sensor).
• Camshaft position (CMP) sensor.
• Ignition control module (ICM) assembly.

The 24X crankshaft position sensor can easily be tested with a multimeter. You can find the test here:

• How To Test The 24X Crankshaft Position Sensor (1995-1999 3.1L V6 Chevrolet Lumina, Monte Carlo).

You can find the ignition coil and ignition module tests here:

• How To Test The Ignition Coil Packs (GM 3.1L, 3.4L).
• Testing The Ignition Module and Crank Sensor (GM 3.1L, 3.4L).
