Alternator Circuit Diagram (1998-2001 4.0L Ford Ranger)

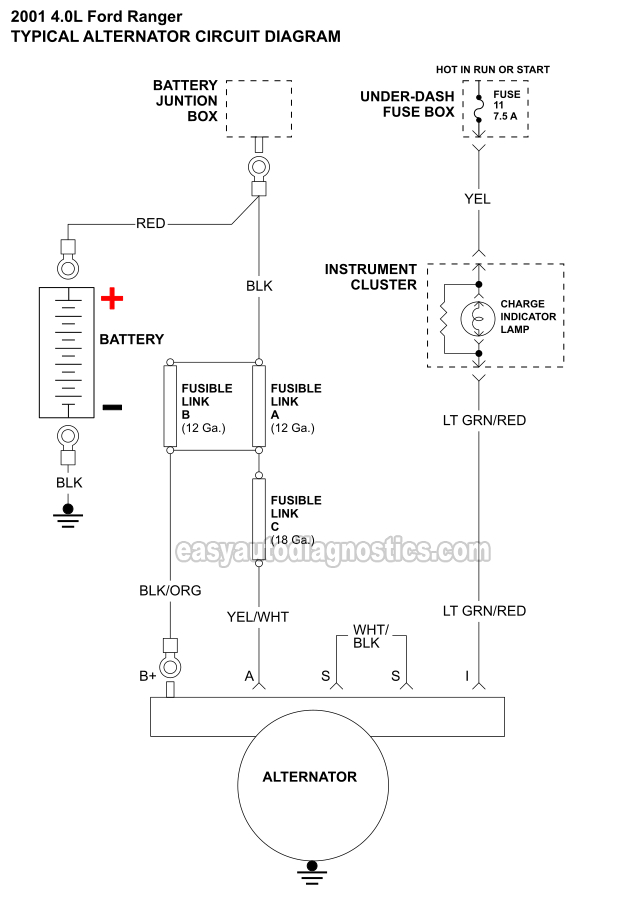

CIRCUIT DIAGRAM 1: 2001 4.0L Ford Ranger

NOTE: This alternator circuit wiring diagram applies only to the 2001 4.0L Ford Ranger.
